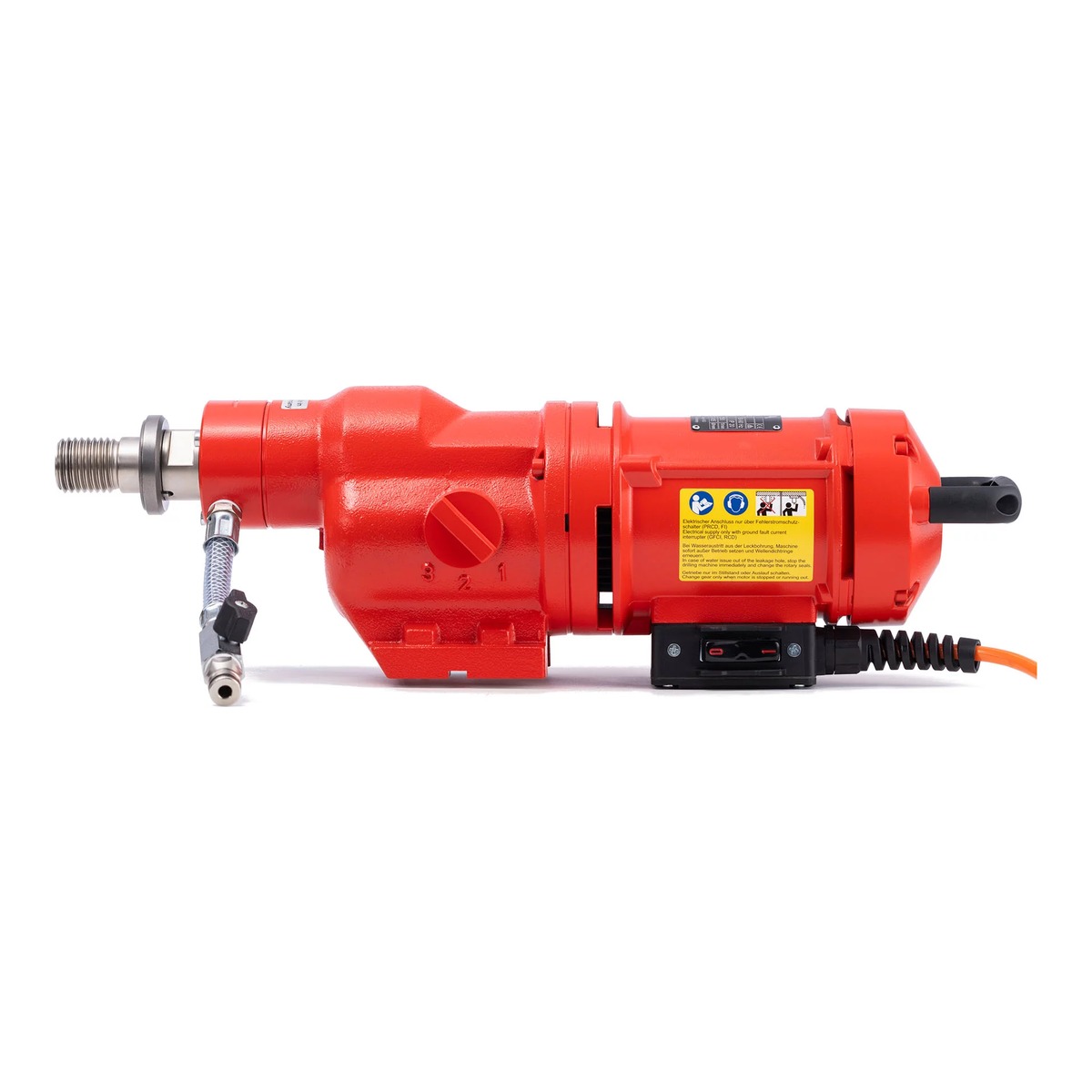

WEKA DK32 – Industry-standard 3.200 W core drilling motor for stand-mounted drilling
The WEKA DK32 diamond core drilling machine is the undisputed classic among professional core drilling motors in the construction industry. With an impressive rated power of 3.200 watts and a drilling range of Ø 55 mm to 350 mm, the DK32 delivers the power needed for demanding wet drilling in heavily reinforced concrete, natural stone and masonry.
The most important advantages of the WEKA DK32 at a glance:
- Powerful 3-speed gearbox: Matched gear stages (230, 480, 720 1/min) enable the optimal cutting speed across the entire drilling range.
- Oil-bath lubrication with oil pump: The highly effective lubrication ensures reliable continuous operation of the gearbox even under extreme loads.
- Intellitronic overload protection: Soft start and electronic current monitoring protect motor and gearbox from damage and prevent the fuse from tripping.
- Full aluminium housing: The extremely robust metal housing ensures maximum stability and optimal heat dissipation.
Technical data:
Rated power
3.200 watts
Output power
2.300 watts
Drilling diameter (in concrete)
approx. 55 – 350 mm
Gear / speed (full load)
Gear 1: 230 / Gear 2: 480 / Gear 3: 720 1/min
Tool holder
1 1/4" UNC
Housing material
Die-cast aluminium
Weight
approx. 11,9 kg
Mounting
Standard mounting plate (WEKA 4x M8)
Scope of delivery & recommended accessories:
The WEKA DK32 is designed exclusively for stand-mounted use. The scope of delivery includes the core drilling machine including water connection, PRCD residual-current device and case. Matching heavy-duty drill stands, water pressure tanks and 1 1/4" UNC diamond core bits can be found in the accessories section of our shop.
